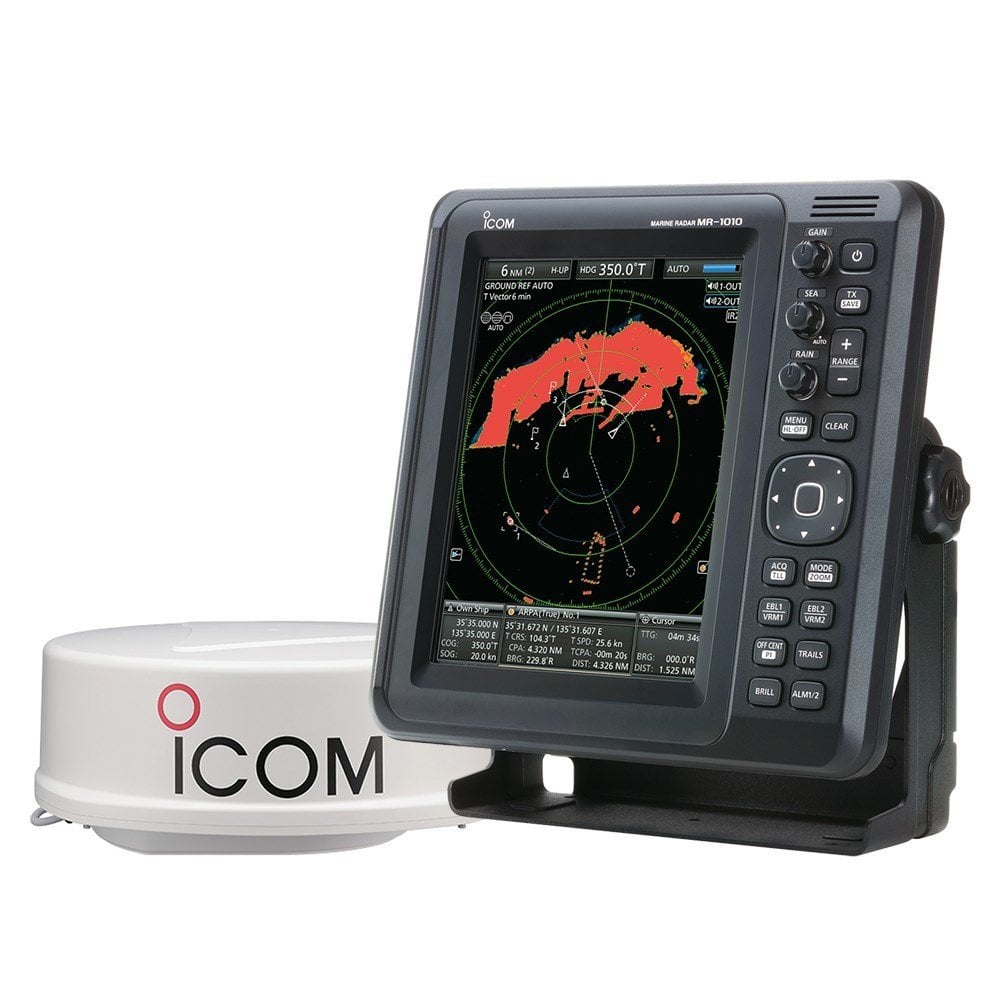

ICOM MR-1010RII Su Üstü 36Nm RADAR
MR-1010RII
4kW Radome ile Gerçek 36NM Menzil
NEA TEKNOLOJİ FARKI İLE İNANILMAZ FİYAT İLE ÜSTELİK
5 BÖLGEDE İNDİRİMLİ MONTAJ AYRICALIĞI İLE DENİZCİLERİMİZİN HİZMETİNDE.*
| Display Unit | |
|---|---|
| Display type | 10.4-inch Color TFT LCD |
| Resolution | 480 × 640 dots |
| Type of emission | 16K0G3E (FM) |
| Minimum range | 25 m; 82 ft (at 1⁄8 NM range) |
| Maximum range | 36 NM |
| Range scales NM km |
1/8, 1/4, 1⁄2, 3⁄4, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 32, 36 1/4, 1⁄2, 3⁄4, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 32, 36, 48 |
| Preheat time | 90 seconds |
| Power supply | 10.2–42 V DC |
| Power consumption (at zero wind velocity ) |
55 W (approximately) |
| Usable temperature range | –15°C to +55°C; +5°F to +131°F |
| Input data format | NMEA 0183, N+1, AUX, IEC61162-2 |
| Output data format | NMEA 0183 |
| Scanner Unit | |
|---|---|
| Type | 60 cm; 2 ft radome scanner |
| Rotation speed | 24, 36 rpm typ. |
| Horizontal beamwidth | 4° typ. |
| Vertical beamwidth | 22° typ. |
| Sidelobe | –22 dB typ. |
| Usable temperature range | –25°C to +70°C; –13°F to +158°F |
| Usable humidity range | Less than 95% (at 40°C; +104°F) |
| Frequency | 9410 MHz ±30 MHz |
| Modulation | P0N |
| Peak output power | 4 kW |
| Pulse-width/repetition rate | 80 ns/2160 Hz, 80 ns/1440 Hz, 250 ns/1440 Hz, 350 ns/1440 Hz, 350 ns/720 Hz, 900 ns/720 Hz |
| Modulator | FET switching |
| Intermediate frequency | 60 MHz |
| IF bandwidth | 10 MHz, 3 MHz |
| Tuning | Auto/manual selectable |
| Supplied system cable | 15 m; 49.2 ft; OPC-2341 |
All stated specifications are subject to change without notice or obligation.
The simplified Automatic Radar Plotting Aids (ARPA) function is designed to help prevent a collision with other vessels or landmasses. The radar automatically acquires and plots other vessels and landmasses that are in the set watch area. It automatically calculates the closest point of approach (CPA), and the time to closest point of approach (TCPA) limit of your vessel and the targets, and sounds an alarm if there is a danger of colliding with them. ARPA Features • Only targets in the 0.25 to 16 NM range that are displayed with a high luminosity (strong return signal) can be selected as ARPA targets. • Up to 10 targets can be acquired and plotted on the screen, including up to 5 automatically acquired targets (when the Auto Acquire function (p.25) is turned ON in the Menu screen). • Plot positions are identified by an approved symbol mark (p. 24) and associated plot number. • The target and vector line will move across the screen at the rate and direction defined by the calculated true or relative course and speed. • The vector line is displayed on the target
ARPA operation D
Operation Select a target on the screen that you want to track. 1. Move the cross-line cursor onto a desired target. 2. Push [ACQ]/[ ] to set the target for tracking. • A dotted circle symbol is displayed on the cursor. • After 1 minute progressing time has passed, the circle changes to a solid circle with a dotted vector line, the number of the target is displayed beside the icon, and tracking operation starts. • When the target disappears, a red cross blinks on the target, and then the mark disappears after 1 minute. • When a target advances within the CPA and TCPA limits, the mark changes its color to red, blinks, and sounds an alarm. To cancel the alarm, push [CLEAR]/ [ ]. 3. To display a target information, move the crossline cursor onto the target, and then push [ENTER]/[ ]. • The corners of a square is displayed on the selected target. • The target identification number, position, course (CRS), speed (SPD), CPA, TCPA, bearing (BRG), and distance (DIST) are displayed. 4. To release the target, move the cursor onto the target, then hold down [CLEAR]/[ ] for 1 second. Target ARPA
ÜRÜN fiyatına kurulum - montaj ve burada harcanacak sarf malzemeleri dahildir.
Montaj yapılması istenilen yere yol ücret ve masrafları, konaklama gerekirse ekibin konaklama ücretleri dahil edilmemiştir.
* Kampanya dönemleri ya da ürün üzerinde indirim uygulandığı zamanlar ücretsiz kurulum hariçtir.
