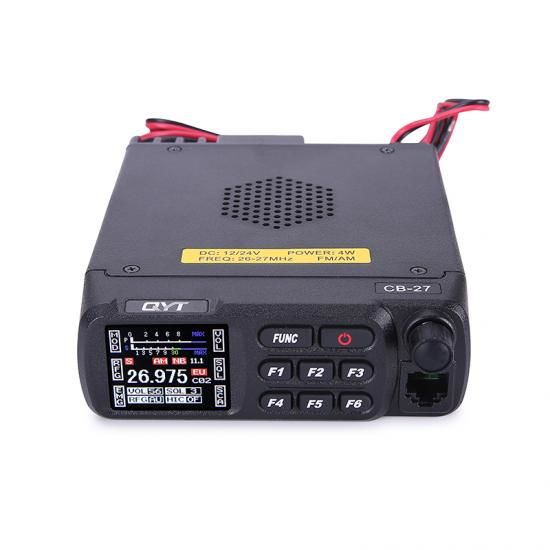

AM FM Citizen Band Color Screen Mobile Ham Radio

1.CB27 have mini size with color screen used aluminum housing for better thermal dispersion.

2.CB27 can be connected to 12V and 24V power supply, suitable for cars, trucks, ships, etc.

3.The communication method of citenzen band radio is different from VHF and UHF, the sign of CB radio sent to the ionosphere then reflected back to the ground, ground reflected back to ionosphere. Through countless reflections to realize transmission.

The CB27 Kit includes:

• Radiostation
• Microphone
• DC power cable
• Mobile mounting bracket
• Mounting hardware
• User's manual



General Specifications
Modulation Mode		AM/FM
Frequency Range		26.965-27.405MHz
Frequency Tolerance		±5.0ppm
Input Voltage		12/24V
Dimensions (in mm)		122(W) *158(D) * 44(H)
Weight		660g
Frequency Control		PLL Synthesizer
Operating Temperature Range		-20℃ ~+55℃
Current Drain	Transmit	2A MAX
	Receive	Squelched 0.3A
	VOL Max	0.8A
Antenna Connector		UHF, SO-239
Receive(ETSI EN 300 086 Standarddized.Test))
Sensitivity		Less than 1uV for 10dB(S+N)/N
Image Rejection		70dB
Adjacent Channel Rejection		60dB
IF Frequencies		1st 10.695MHz
		2nd 455KHz
Automatic Gain Control(AGC)		Less than 10dB change in audio
		Output for inputs from 10 to 50000uV
Squelch		Less than 1uV
Audio Output Power		3 Watt into 8 ohms
Frequency Response		300-3000Hz
Transmit(ETSI EN 300 086 Standarddized.Test)
Power Output		4Watt AM/ FM
Transmission Interference		Inferior to 4nW(-54dBm)
Frequency Response		300-3000Hz
Modulated signal distortion		Inferior to 5%
Output Impedance		50 ohms
