Sirio HP 2070 H-R Dualband Araç Anteni
4.058,02 ₺
420,68 TL 'den başlayan taksitlerle bu ürünü alabilirsiniz.
Havale
3.855,12 TL
(%5,00 havale indirimi)
Stok Durumu
Stokta Var
Kategori
Fiyat
89,25 USD + KDV
HP 2070 R
HP 2070 H
Dual-Band: 2m And 70cm Bands

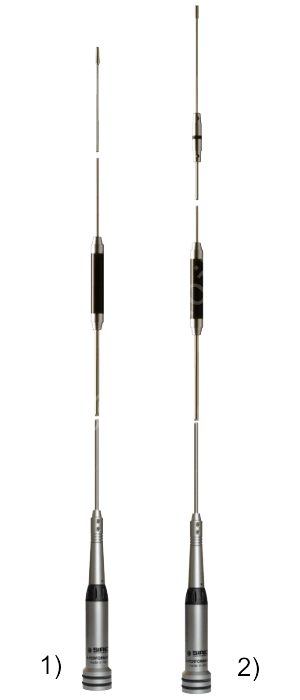

1) HP 2070 R
2) HP 2070 H
2) HP 2070 H
| Features: |
|---|
| Available Version for USA ham band (146 & 445 MHz) |
Electrical Data: |
|
|---|---|
| Type: | VHF: 1/2 λ UHF: 2 x 5/8 λ Colinear |
| Ground plane independent | |
| Radiation: | Omnidirectional |
| Polarization: | Linear vertical |
| Frequency range: | VHF: 142-148 MHz UHF: 430-440 MHz |
| Systems: | 2m-HAM, 70cm-HAM, ORBCOMM M2M, TETRA |
| Gain: | HP 2070 H: VHF 0.7 dB UHF 4.4 dB ref. to a λ/4 whip HP 2070 R: VHF 0.6 dB UHF 4.6 dB ref. to a λ/4 whip |
| Max Power: |
HP 2070 R /H FULL POWER:
VHF: 150 W (CW)
UHF: 100 W (CW) |
| Grounding protection: | DC-Ground |
| Connector: | UHF-male (PL-259) |
Mechanical Data: |
|
|---|---|
| Materials: | Brass, Stainless Steel 17/7 PH, Nylon |
| Height (approx): |
HP 2070 H:
1080 mm / 3.54 ft
HP 2070 R:
1000 mm / 3.28 ft
|
| Weight (approx): |
HP 2070 H:
330 gr / 0.73 lb
HP 2070 R:
300 gr / 0.66 lb
|
| Mounting type: | On-Connector |
